Borosilicate Glass Column Sections
Goel Glass manufactures high-precision Borosilicate Glass Column Sections engineered for process columns in chemical distillation, fractionation, absorption, and scrubbing operations. In industrial glass column construction, column assemblies are erected using either standard pipe sections with separate support plates or dedicated column sections integrated with internal fused packing shelves.

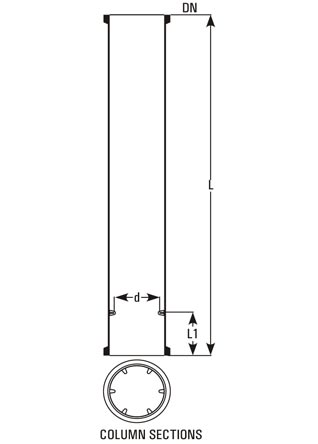

Each column section is fabricated from high-purity Borosilicate Glass 3.3 and features an integral fused internal glass shelf designed to securely seat column packing supports (such as fused glass rod plates or PTFE perforated plates). This monolithic shelf construction eliminates the need for cumbersome external supports or metal brackets, ensuring exceptional chemical resistance, smooth fluid dynamics, and uncompromised visibility of column packing, vapor-liquid contact, and wetting performance.
| Cat.Ref. | DN | L | L1 |
|---|---|---|---|
| CS3/1000 | 80 | 1000 | 75 |
| CS4/1000 | 100 | 1000 | 75 |
| CS6/1000 | 150 | 1000 | 75 |
| CS6/1500 | 150 | 1500 | 75 |
| CS9/1000 | 225 | 1000 | 100 |
| CS9/1500 | 225 | 1500 | 100 |
| CS12/1000 | 300 | 1000 | 100 |
| CS12/1500 | 300 | 1500 | 100 |
Column Section with Thermometer Branch

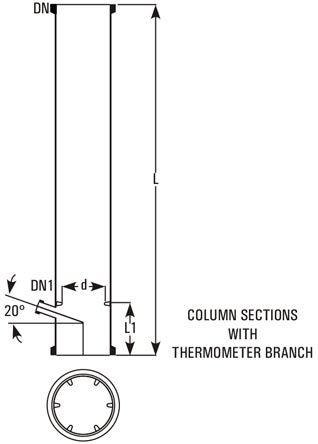

For precise thermal profiling along distillation, stripping, or extraction columns, Goel Glass manufactures column sections equipped with an integrated thermometer branch located directly beneath the packing support shelf.
The thermometer branch is engineered at a downward 20° slope. This deliberate inclination facilitates smooth insertion of temperature sensors or glass thermometer pockets while preventing stagnant liquid or condensate from pooling around the sensor well, guaranteeing rapid thermal response and exact real-time process monitoring.
| Cat.Ref. | DN | DN1 | L | L1 | d |
|---|---|---|---|---|---|
| CST3/1000 | 80 | 25 | 1000 | 125 | 50 |
| CST4/1000 | 100 | 25 | 1000 | 125 | 75 |
| CST6/1000 | 150 | 25 | 1000 | 125 | 125 |
| CST6/1500 | 150 | 25 | 1500 | 125 | 125 |
| CST9/1000 | 225 | 25 | 1000 | 150 | 175 |
| CST9/1500 | 225 | 25 | 1500 | 150 | 175 |
| CST12/1000 | 300 | 25 | 1000 | 150 | 250 |
| CST12/1500 | 300 | 25 | 1500 | 150 | 250 |
Key Design Features
- Premium Borosilicate 3.3 Glass: Unsurpassed resistance to aggressive chemicals, concentrated acids, halogens, and solvents with zero metallic ion leaching.
- Integral Fused Packing Shelf: Monolithic internal glass shelf provides sturdy mechanical support for glass rod plates (Type A) or PTFE retainers without reducing effective cross-sectional flow area.
- Process Visibility: Full 360° optical transparency allows direct observation of column flooding, liquid distribution, packing wetting, and vapor reflux dynamics.
- 20° Angled Side Branch: Prevents condensate build-up and stagnation around temperature sensors or sampling probes.
- Modular Standardization: Standard nominal bores ranging from DN 80 to DN 600, engineered with standardized flat/buttress ends compatible with industry-standard coupling assemblies.
Industrial Applications
Goel Glass column sections are deployed across North American chemical, pharmaceutical, petrochemical, and academic research institutions. Key applications include fractional distillation towers, packed absorption and scrubbing columns, liquid-liquid extraction units, solvent recovery plants, and pilot-scale process development facilities.
